PS2801-4

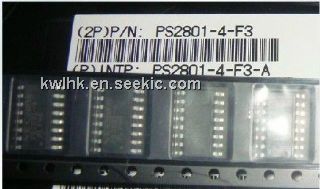

PS2801-4, ssop photocoupler, 80 v, 3 μs, 1.27 mm, sop

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.57 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.57 / Piece
500 ~ 1000 :	0.45 / Piece
1000 ~ 1500 :	0.32 / Piece

PartNumber:: PS2801-4

Brand:: NEC - NEC | D/C: 12+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-06

From Other Seller

Part Number:PS2801-4
US $0.32 - 0.57
PS2801-4

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PS2801-4 is a high isolation voltage ssop photocoupler. They are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications. This package has shield effect to cut off ambient light. Applications are: (1)Programmable logic controllers; (2)Measuring instruments; (3)Power supply; (4)Hybrid IC.

Parametrics

PS2801-4 absolute maximum ratings: (1)forward current (dc)if: 50 ma/ch; (2)reverse voltage vr: 6 v; (3)power dissipation derating δpd/°c: 0.6 to 0.8 mw/°c; (4)power dissipation pd: 60 to 80 mw/ch; (5)peak forward current *1 ifp: 1 a/ch; (6)collector to emitter voltage vceo: 80 v; (7)emitter to collector voltage veco: 6 v; (8)collector current ic: 50 ma/ch; (9)power dissipation derating δpc/°c: 1.2 mw/°c; (10)power dissipation pc: 120 mw/ch; (11)isolation voltage *2 bv: 2 500 vr.m.s.; (12)operating ambient temperature ta: −55 to +100 °c; (13)storage temperature tstg: −55 to +150 °c.

Features

PS2801-4 features: (1)high isolation voltage (bv = 2 500 vr.m.s.); (2)small and thin package (4,16-pin ssop, pin pitch 1.27 mm); (3)high collector to emitter voltage (vceo = 80 v); (4)high-speed switching (tr = 3 μs typ., tf = 5 μs typ.); (5)ordering number of tape product: ps2801-1-f3, f4, ps2801-4-f3, f4; (6)pb-free product; (7)safety standards: ps2801-1, -4; (8)ul approved: no. e72422; (9)bsi approved: no. 8188, 8189; (10)csa approved: no. ca 101391; (11)din en60747-5-2 (vde0884 part2)approved: no. 40008902 (option).
